    10Gbase RJ45 SFP Module 10G 30M copper Transmission ROHS Certification

    Ask Lasest Price
    Brand Name : Linkopto , or OEM
    Model Number : HSP-T5-R
    Certification : CE, FCC, ROHS, TUV, ISO9001
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C
    Supply Ability : 20,000pcs per week
    Delivery Time : 1~3 working days
    • Product Details
    • Company Profile

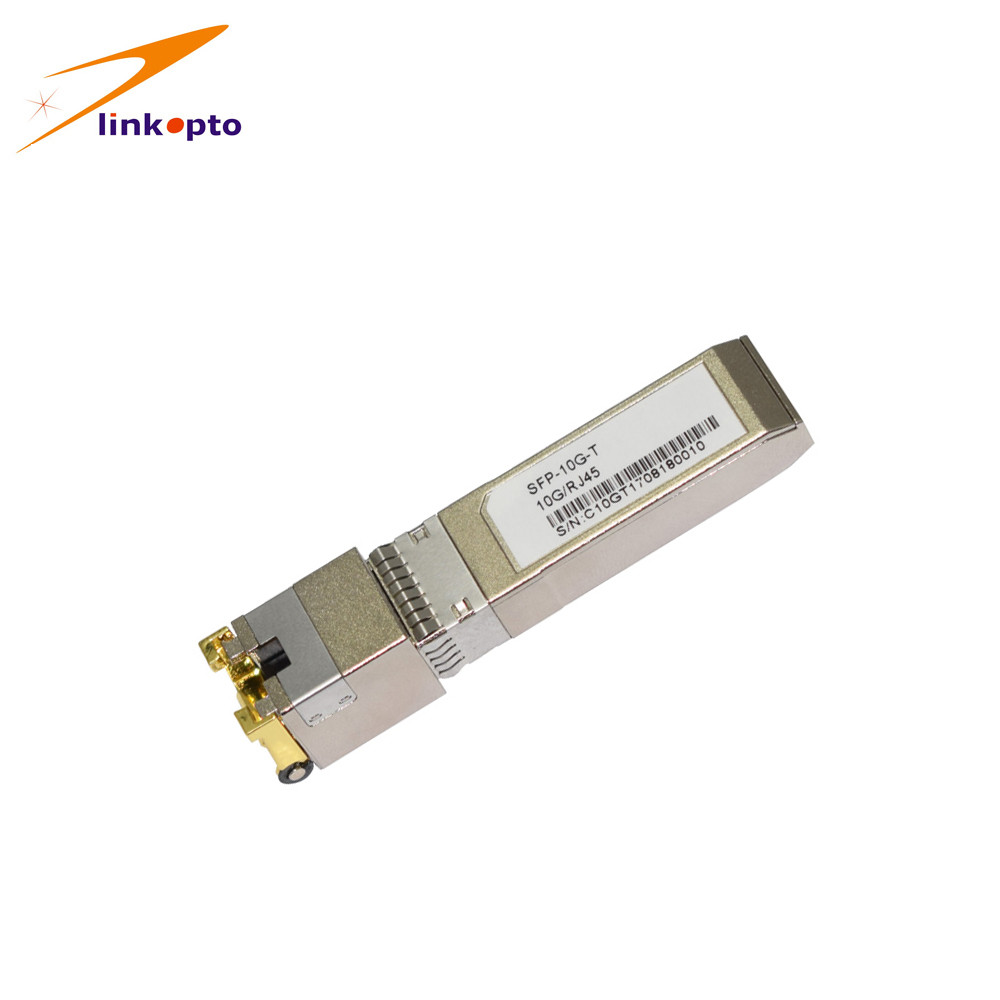

    10Gbase RJ45 SFP Module 10G 30M copper Transmission ROHS Certification

    10G Copper SFP 10GBase-T Copper-T SFP RJ45 30M Compatible with Juniper

    The 10G Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables.


    Features

    Ø Hot-pluggable SFP footprint

    Ø Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T

    Ø Hot-pluggable SFP footprint

    Ø Compact RJ-45 connector assembly

    Ø RoHS compliant and lead-free

    Ø Single +3.3V power supply

    Ø 10 Gigabit Ethernet over Cat 6a cable

    Ø Operating case temperature range of

    0°C to +70°C (Commercial)

    -20°C to +85°C (Extend)


    Applications

    Ø Fiber Channel

    Ø 10Gigabit Ethernet

    Ø Switched backplane applications

    Ø Router/Server interface

    Ø Switch to Switch interface

    Ø Other optical transmission systems


    Description

    SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3.


    SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.


    Copper SFP transceivers use an integrated RJ-45 connector with transformer and PHY IC.


    Quality Control

    10Gbase RJ45 SFP Module 10G 30M copper Transmission ROHS Certification10Gbase RJ45 SFP Module 10G 30M copper Transmission ROHS Certification

    10Gbase RJ45 SFP Module 10G 30M copper Transmission ROHS Certification10Gbase RJ45 SFP Module 10G 30M copper Transmission ROHS Certification


    LINKOPTO Package


    Related Product List

    Item No.Description
    SFP-BX-U-101.25G Tx1310nm/Rx1550nm 10km DOM BiDi SFP LC
    SFP-BX-D-101.25G Tx1550nm/Rx1310nm 10km DOM BiDi SFP LC
    SFP-2GBX-U-S202.5G Tx1310nm/Rx1550nm 20km DOM BiDi SFP SC
    SFP-2GBX-D-S202.5G Tx1550nm/Rx1310nm 20km DOM BiDi SFP SC
    SFP-BX-U-S401.25G Tx1310nm/Rx1550nm 40km DOM BiDi SFP SC
    SFP-BX-D-S401.25G Tx1550nm/Rx1310nm 40km DOM BiDi SFP SC
    SFP-BX-U-S801.25G Tx1490nm/Rx1550nm 80km DOM BiDi SFP SC
    SFP-BX-D-S801.25G Tx1550nm/Rx1490nm 80km DOM BiDi SFP SC
    SFP-BX-U-L1201.25G Tx1490nm/Rx1550nm 120km DOM BiDi SFP LC
    SFP-BX-D-L1201.25G Tx1550nm/Rx1490nm 120km DOM BiDi SFP LC
    SFP-10G-T10G Copper RJ45 SFP Module 30M
    XFP-10G-LRDual LC 10G 1310nm 20km LR XFP+
    SFP-10G-ERDual LC 10G 1550nm 40km ER SFP+
    SFP-10G-ZRDual LC 10G 1550nm 80km ZR SFP+
    SFP-10G-ZR100Dual LC 10G 1550nm 100km ZR SFP+
    SFP/SFP+ Compatible Cisco ASR 1001-X 1002-X
    Zyxel XGS-2210-28 and zyxel XGS-4600-32
    EPON OLT PX20+1.25G/1.25G Tx1490nm/Rx1310nm EPON OLT SFP PX20+
    Compatible Chinese OLT
