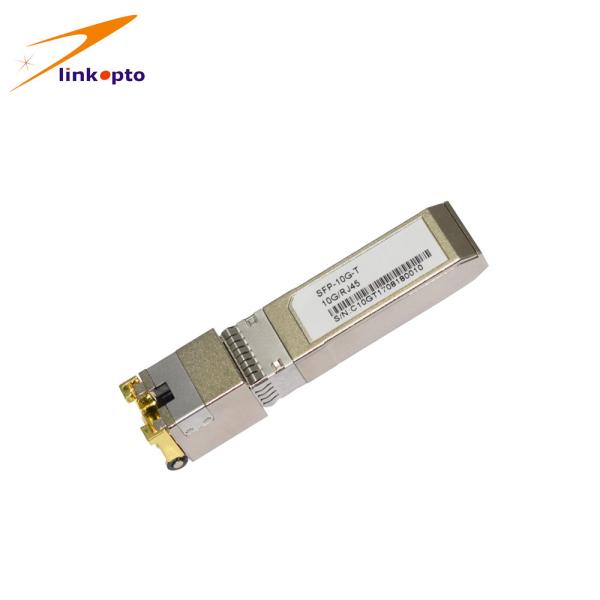

10000M SFP 10G Copper SFP+ Copper-T SFP+ RJ45 30M Compatible with HP CISCO

The Linkopto 10G Copper SFP transceivers IS high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

Features

• Up to 10Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Fully metallic enclosure for low EMI
• Low power dissipation
• Compact RJ-45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• Supports Links up to 30m using Cat 6a/7 Cable
• RoHS Compliant
• Operating case temperature: 0℃ to 70℃

Applications

Ø Fiber Channel

Ø10Gigabit Ethernet

Ø Switch to Switch interface

Ø Router/Server interface

Ø Other optical transmission systems

Ø Switched backplane applications

Description

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
