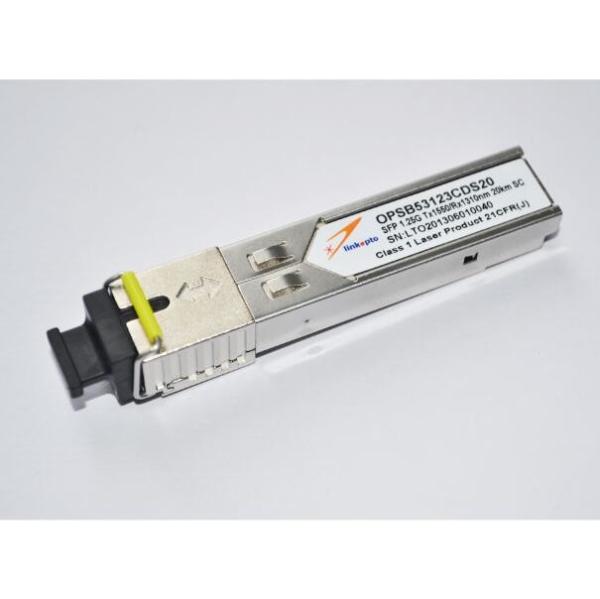

PN: LSB5312-3SCD20
1.25G BIDI SFP Tx1550/Rx1310nm 20km Simplex SC Connectors for
Juniper
Features
Ø Dual data-rate of 1.25Gbps/1.063Gbps operation
Ø 1550nm FP laser and PIN photodetector for 20km transmission
Ø Compliant with SFP MSA and SFF-8472 with simplex SC receptacle
Ø Digital Diagnostic Monitoring:Internal Calibration or External
Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature range:
0 °C to +70 °C (Commercial)
-40 °C to +85 °C (Industrial)
Applications
Ø Gigabit Ethernet
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
Linkopto SFP-BIDI transceivers are high performance, cost effective
modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
Linkopto transceiver consists of three sections: a FP laser
transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class
I laser safety requirements.
Linkopto transceivers are compatible with SFP Multi-Source Agreement (MSA)
and SFF-8472. For further information, please refer to SFP MSA.
