PN: LSDxxX-3LCD80
10G DWDM SFP+ Transceiver 10G SFP+ DWDM ITU Grid C Band 80km Duplex
LC
Features
1. Up to 11.1Gbps Data Links
2. Up to 80km transmission on SMF
3. DWDM EML Laser and APD receiver
4. Metal enclosure, for lower EMI
5. 2-wire interface with integrated Digital Diagnostic monitoring
6. Hot-pluggable SFP+ footprint
7. Specifications compliant with SFF 8472
8. Compliant with SFP+ MSA with LC connector
9. Single 3.3V power supply
10. Case operating temperature range:0°C to 70°C
11. Power dissipation < 1.5W
Applications
1. 10GBASE-ZR/ZW
2. 80 km 10G Fiber Channel
3. 10G Ethernet with FEC
Standard
1. Compliant to 802.3ae 10GBASE-ZR/ZW
2. Compliant to SFF-8431
3. RoHS Compliant
Specifications:
| P/N | SFP-10G-DW-xx.xx-A |
| Datarate | 10.3G/ps |
| Distance | 80KM |
| Wavelength | DWDM 1563.86nm-1530.33nm |
| Transmitter | EML |
| Receiver | APD |
| Media | SMF |
| DDM/DOM | YES |
| Connector | LC |
| Application | 10 Gigabit Ethernet |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Brand | Neuter, OEM, Linkopto |

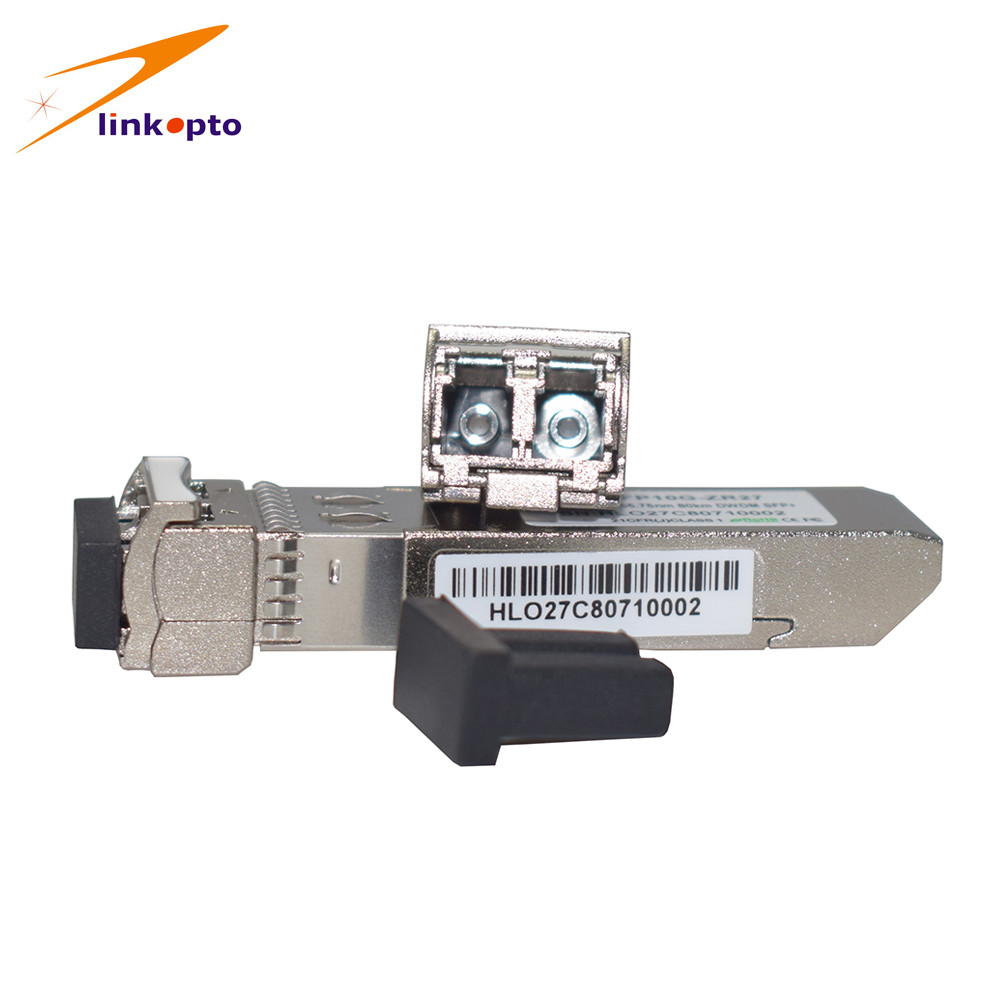

Description
The Linkopto DWDM SFP+ transceivers include an APD diode and
temperature stabilized DFB-EML transmitter. Digital diagnostic
functions are available via an I2C.This module is designed for
single mode fiber and operates at a nominal wavelength of 100GHz
ITU Grid, C Band DWDM wavelength.
Quality Control
FAQ
1. Do you have any MOQ?
Ans : No, we did not set any MOQ unless for Special promotion item.
2. How can I pay you?
Ans : We accept Bank Wire Transfer, Paypal ( for <$5000 payment
)
Please contact us for our Paypay account.
3. What is your warranty?
Ans : We offer basic 3 years warranty for all products.
4. Can I use your Transceiver module on Cisco or Alcatel-Lucent
equipment?
Ans : Yes, we can offer Transceiver modules compatible on Cisco,
Alcatel-Lucent, HP, Extreme…etc
5. How about your lead-time?
Ans : For normal order, we can deliver in 1 weeks, for Hot selling
products, we can deliver within 3 days.
