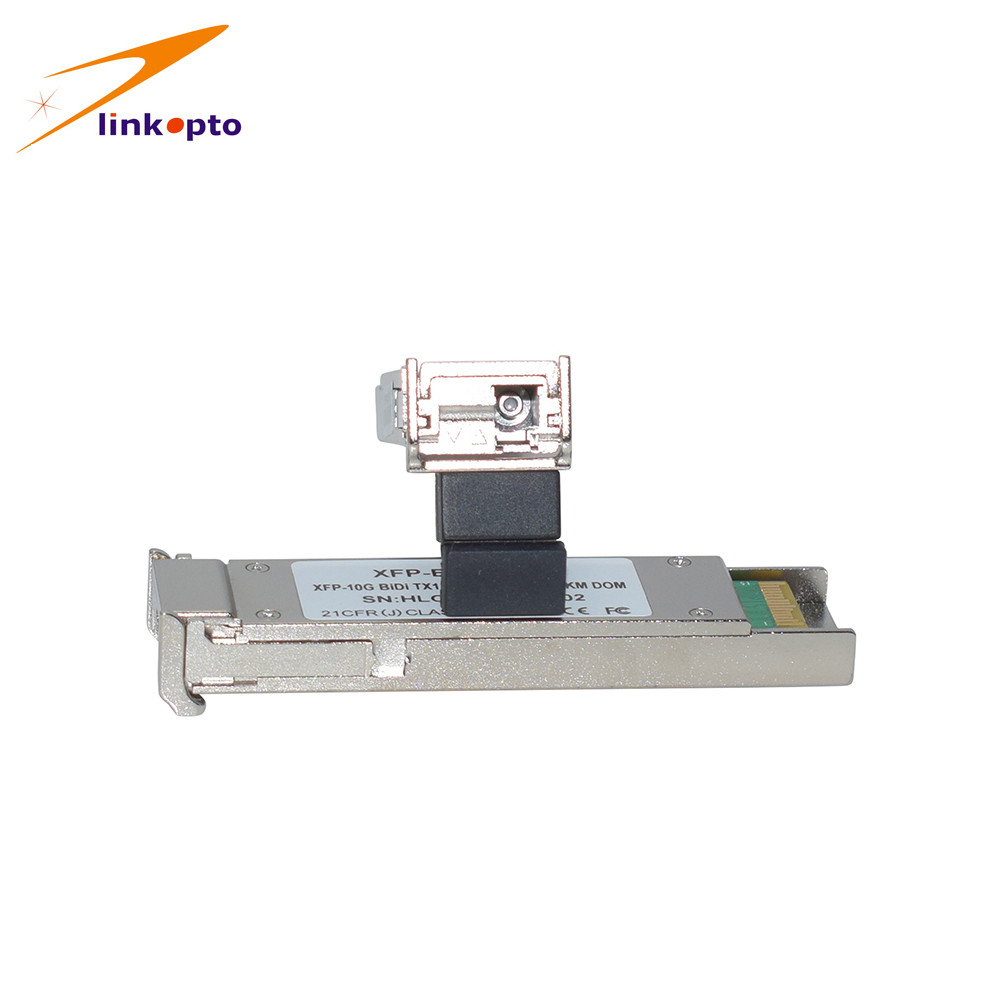

EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size

    Buy cheap EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size from wholesalers

    Buy cheap EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size from wholesalers
    • Buy cheap EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size from wholesalers
    • Buy cheap EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size from wholesalers
    • Buy cheap EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size from wholesalers

    EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size

    Ask Lasest Price
    Brand Name : Linkopto , or OEM
    Model Number : EXB23X-3LCD20
    Certification : CE, FCC, ROHS, TUV, ISO9001
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C
    Supply Ability : 20,000pcs per week
    Delivery Time : 1~3 working days
    • Product Details
    • Company Profile

    EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size


    10Gbps XFP Bi-Directional Transceiver 20KM Reach

    Rx1270/Rx1330 nm

    Features

    Ø Supports 9.95Gb/s to 10.5Gb/s bit rates

    Ø Hot-pluggable XFP footprint

    Ø Maximum link length of 10KM with SMF

    Ø 1270nm DFB laser Transmitter ,and 1330nm Receiver

    Ø XFP MSA package with LC connector

    Ø No reference clock required

    Ø Loop Back Support.

    Ø +3.3V,+1.8V power supply

    Ø Power dissipation <2W

    Ø Compatible with RoHS

    Ø Built-in digital diagnostic functions

    Ø Temperature range 0°C to 70°C


    Applications

    Ø 10GBASE-LR at 10.3125Gbps

    Ø 10GBASE-LW at 9.953Gbps

    Ø 10GBASE-BX 10G Ethernet


    Product Description

    EXB2392-3LCD20 is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20KM on SMF.


    The transceiver module comprises a transmitter with a 1270nm DFB laser transmitter, an integrated 1330nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.


    ​Quality Control

    EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small SizeEXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size

    EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small SizeEXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size

    EXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small SizeEXB2392 - 3LCD10 10G XFP Module Simplex LC Connector With Small Size


    Product Number
    Date Rate
    Wavelength(nm)
    Source
    Connector
    Reach
    BIDI-XFP-LR-27
    10G
    Tx1270/Rx1330
    DFB+PIN
    LC
    10km
    BIDI-XFP-LR-33
    10G
    Tx1330/Rx1270
    DFB+PIN
    LC
    10km
    BIDI-XFP-ER-27
    10G
    Tx1270/Rx1330
    DFB+PIN
    LC
    40km
    BIDI-XFP-ER-33
    10G
    Tx1330/Rx1270
    DFB+PIN
    LC
    40km
    BIDI-XFP-ER+-27
    10G
    Tx1270/Rx1330
    DFB+APD
    LC
    60km
    BIDI-XFP-ER+-33
    10G
    Tx1330/Rx1270
    DFB+APD
    LC
    60km
    BIDI-XFP-ZR-49
    10G
    Tx1490/Rx1550
    EML+APD
    LC
    80km
    BIDI-XFP-ZR-55
    10G
    Tx1550/Rx1490
    EML+APD
    LC
    80km
