    Dual Sc Fiber Media Converter SM 1550nm For Telecommunication Networks

    Ask Lasest Price
    Brand Name : Linkopto , or OEM
    Model Number : Li-1100-S60
    Certification : CE, FCC, ROHS, TUV, ISO9001
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C
    Supply Ability : 20,000pcs per week
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

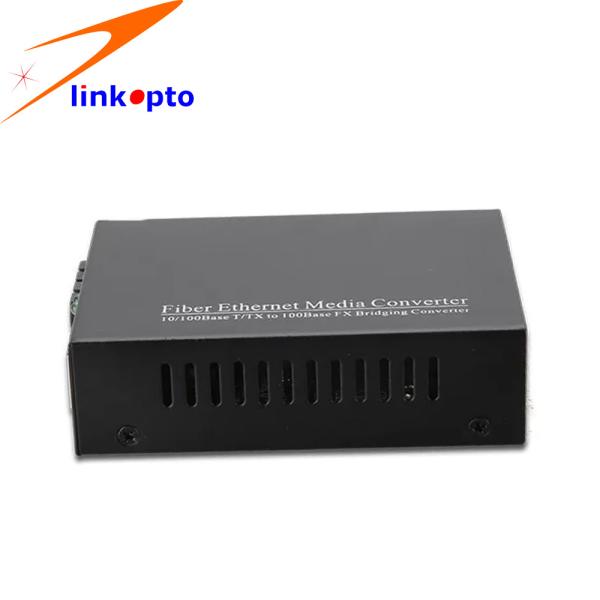

    Dual Sc Fiber Media Converter SM 1550nm For Telecommunication Networks

    PN: EM-1100-S60

    10/100/1000M Dual fiber Media Converter SM 1550nm Media Converter 60km SC

    Description

    The Linkopto EM-1100 Series of Ethernet media converters with internal power supply are 10/100/1000Mbps auto-sensing and utilize fiber optics to extend the physical distance range of typical Ethernet links (100m) to 1Km max. on MMF and 100Km max. on SMF.


    Features

    Ø 1600byte super data packet transmission

    Ø 10/100/1000Mbps autosensing, auto-MDI/MDIX

    Ø Link fault pass through (LFPT)

    Ø Full duplex-flow control, Half duplex-back pressure

    Ø Full- positioned LEDs to indicate power and network status


    Applications

    Ø Telecommunication Networks

    Ø Schools, Offices, Cyber bars


    Technical Index:

    ParameterSpecifications
    Access mode10/100/1000Mbps
    StandardIEEE802.1 10Base-T, IEEE802.3u 1000Base-TX, IEEE802.3 1000Base-FX
    Wavelength1550nm
    Distance

    Category-5 twisted pair: 100m

    Fiber:multi-mode 50/125,62.5/125μm(the max distance up to 550m)

    Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20-80km)

    Port

    One RJ45 port:

    For connecting STP/UTP category-5 twisted pairs

    One optical port:

    Multi-mode, dual fiber: SC (50, 62.5/125μm)

    Single mode, dual fiber: SC (9/125μm)

    Conversion meansMedia conversion
    MAC address table1K
    Buffer space256kbit
    Flow control

    Full duplex: flow control;

    Half duplex: back pressure

    DelayStore-and-forward: 9.6μs; cut-through: 0.9μs
    BER<19-9
    MTBF100,000 hours
    LED indicatorPWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding)
    Power supplyExternal 5VDC input
    Power consumption4W
    Operating temperature-10~55ºC
    Operating humidity5%~90%
    Maintaining temperature-40~70ºC
    Maintaining humidity5% ~ 90% non-condensing
    Dimensions

    26mmx 70mm x 95mm


    Quality Control

    Dual Sc Fiber Media Converter SM 1550nm For Telecommunication NetworksDual Sc Fiber Media Converter SM 1550nm For Telecommunication Networks

    Dual Sc Fiber Media Converter SM 1550nm For Telecommunication NetworksDual Sc Fiber Media Converter SM 1550nm For Telecommunication Networks


    Related products list

    Item No.Description
    SFP-BX-U-101.25G Tx1310nm/Rx1550nm 10km DOM BiDi SFP LC
    SFP-BX-D-101.25G Tx1550nm/Rx1310nm 10km DOM BiDi SFP LC
    SFP-2GBX-U-S202.5G Tx1310nm/Rx1550nm 20km DOM BiDi SFP SC
    SFP-2GBX-D-S202.5G Tx1550nm/Rx1310nm 20km DOM BiDi SFP SC
    SFP-B10G27-40BIDI SFP+40km, TX1270nm RX 1330 10G LC
    SFP-B10G33-40BIDI SFP+40km, TX1330nm RX1270 10G -LC
    CW-SFP10G-ZR47Duplex LC 10G 1470nm 80km CWDM SFP+,
    CW-SFP10G-ZR61Duplex LC 10G 1610nm 80km CWDM SFP+,
    DW-SFP10G-ZR57Duplex LC 10G C57 1531.90nm 80km DWDM SFP+,
    DW-SFP10G-ZR58Duplex LC 10G C58 1531.12nm 80km DWDM SFP+,
    SFP-10G-SRMultimode Dual LC 10G 850nm 300m SR SFP+
    XFP-10G-LRDual LC 10G 1310nm 20km LR XFP+
    SFP-10G-ERDual LC 10G 1550nm 40km ER SFP+
    SFP-10G-ZRDual LC 10G 1550nm 80km ZR SFP+
    SFP-10G-ZR100Dual LC 10G 1550nm 100km ZR SFP+
    CompatibleSFP/SFP+ Compatible Cisco ASR 1001-X 1002-X
    D-Link, Zyxel XGS-2210-28 and zyxel XGS-4600-32
    EPON OLT PX20+1.25G/1.25G Tx1490nm/Rx1310nm EPON OLT SFP PX20+
    Compatible Chinese OLT
