LINKOPTO -Patch Cord
12Cores MPO Fiber Patch Cord MPO-MTP MM Multi Mode 10 Meters MPO
Cables
Description
LINKOPTO offers high quality fiber cable assemblies such as Patch
Cords, Pigtails, Breakout Cables etc. All of our fiber cables can
be ordered as Single Mode 9/125, Multimode 62.5/125 OM1, Multimode
50/125 OM2 and Multimode 10 Gig 50/125 OM3/OM4 fibers. The 9/125um
single mode fiber patch cable meets RoHS compliant, and all cables
are 100% optically tested for insertion loss to ensure high
quality, it is very cost-effective for network cabling.
12 Cores MPO is the high dense degree of optical fiber pre-connect
system,which is generally use in following areas.
Features
Ø Low insertion loss and back reflection loss
Ø High temperature stability
Ø Good exchangeability
Ø Good Durability
Ø Compact design
Ø IEC-61754-7 and TIA-604-5(FOCIS-5) Standard
Applications
Ø The Data Center application with high dense degree environment
Ø The optical fiber to the building
Ø The internal connector application in fiber equipment
Ø 10G Upgrade to 40G/100G data center.
Specifications
| Connector | MPO to MTP | Polish | Male or Female |
| Fiber Mode | OM3 | Jacket OD | 3.0mm |
| Fiber type | 12 Cores | Wavelength | 850nm |
| Cable Length | 10m | Jacket Color | Blue |
| Cable Jacket | LSZH | Repeatability | <=0.1dB |
| Insertion Loss | <=0.3dB | Durability | <=0.2dB(1000 Times mating) |
| Return Loss | >=50dB | Operate Temperature | -40~75°C
|
Conector Type

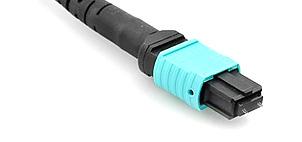

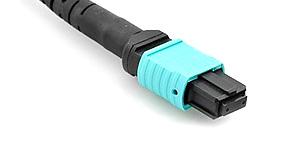

MPO Female Type without Pins MPO Male Type with Pins
LINKOPTO MPO LC Casette
When a patch cord is constructed in a key-up/key-up configuration,
the fiber arrangement on one connector is mirrored about the
vertical axis on the other connector. For example, on connector A
the blue fiber is to the left with the key up, while on connector B
the blue fiber is to the right with the key up. Signals input on
the left side of connector A will be output on the right side of
connector B.
Assembly Structure Illustration:
Ordering Information
| Patch cord Order Information |
| Connector-1 | Polishing | Connector-2 | Polishing | Cable Type | Length | Cable Diameter | Fiber Count | Remark |
| SC | APC | LC | PC | OS2 | 5M | 2.0MM | Duplex | LSZH |
| FC,SC | PC,UPC | FC,SC | PC,UPC | OM1 62.5/125 | 0.5M | 0.9MM | Simplex | Colors |
| LC,ST | APC | LC,ST | APC | OM2 50/125 | 1M,2M | 1.8MM | Duplex | Armored |
| MU,MTRJ | | MU,MTRJ | | OM3 10G | 3M,4M | 2.0MM | 4,6,8 counts | Waterproof |
| E2000,MPO | | E2000,MPO | | OS1 | 5M,10M | 3.0MM | 12counts... | LSZH |
| SMA,DIN | | SMA,DIN | | OS2 9/125 | 100M... | Others | 48Counts... | PVC |
| | | | G657A/B/D | 500M... | | | OFNR |
| | | | G655 | 1000M... | | | OFNP |
