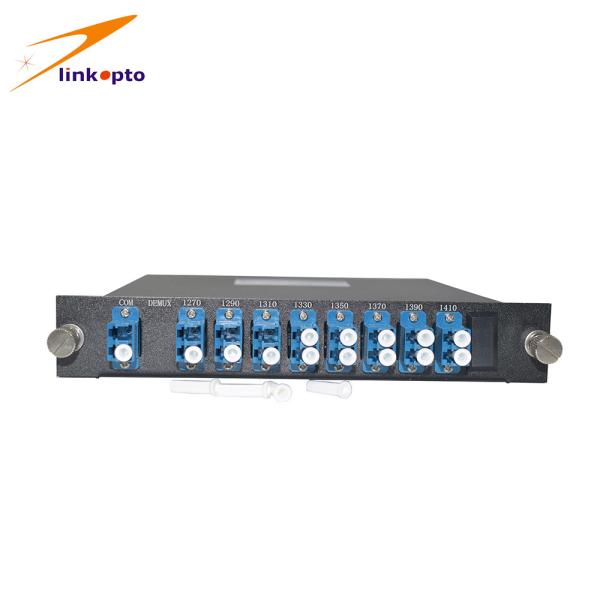

LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design

    Buy cheap LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design from wholesalers

    Buy cheap LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design from wholesalers
    • Buy cheap LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design from wholesalers
    • Buy cheap LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design from wholesalers
    • Buy cheap LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design from wholesalers

    LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design

    Ask Lasest Price
    Brand Name : Linkopto , or OEM
    Model Number : LTU-16CH-CWDM-Mux ( Demux )
    Certification : CE, FCC, ROHS, TUV, ISO9001
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C
    Supply Ability : 80,000 Channels per month
    Delivery Time : 2~7 working days
    • Product Details
    • Company Profile

    LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design

    16CH CWDM Mux Demux 1270~1610nm with LC/UPC Connectors LGX Box Type

    Description

    The 16CH CWDM MUX/DEMUX modules split up to 16 channels (20 nm spaced) to a single fiber.

    The standard packages are ABS Plastic Box, 19" Rack Mount Chassis and LGX Metal Box.


    LINKOPTO CWDM MUX/DEMUX (Coarse Wavelength Division Multiplexer/Demultiplexer) is a flexible and low-cost solution that enables the expansion of existing fiber capacity. Coupled with highly reliable passive optics certified for environmentally hardened applications, the CWDM MUX/DEMUX solution lets operators make full use of available fiber bandwidth in local loop and enterprise architectures.


    Features

    Ø Low PDL

    Ø High Isolation

    Ø High Reliability and Stability

    Ø Compact Design

    Ø Low Insertion Loss

    Ø Good channel-to-channel uniformity

    Ø Wide Operating Temperature: From -40℃ to 85℃

    Ø Wide Operating Wavelength: From 1260nm to 1620nm


    Applications

    Ø PON Networks

    Ø CATV Links

    Ø CWDM System


    Compliance

    Ø RoHS

    Ø Telcordia GR-1209-CORE-2001

    Ø Telcordia GR-1221-CORE-1999

    Specifications (1×N CWDM Mux/Demux Module)

    Parameters
    1x2
    1x4
    1x8
    1x16
    Center Wavelength (nm)
    ITU, ITU+1
    Passband (nm)
    ITU±6.5
    Operating Wavelength (nm)
    1460~1620 or 1260~1620
    Channel Space (nm)
    20
    Fiber Type
    SMF-28e or customer specified
    IL (dB) (P/A Grade)
    0.7/1.0
    1.4/1.7
    2.0/2.5
    3.5/4.0
    Isolation(dB)
    Adjacent Channel
    30
    Non-Adjacent Channel
    50
    Ripple (dB)
    0.3
    0.4
    0.5
    0.5
    PDL (dB)
    0.2
    PMD (ps)
    0.1
    RL (dB)
    45
    Directivity (dB)
    50
    Maximum Optical Power (mw)
    500
    Operating Temperature (℃)
    -40～85
    Storage Temperature (℃)
    -40～85
    BOX Package (mm)
    100*80*10
    140*115*18
    LGX Package
    1U, 2U
    19’’ Rack mount Package
    1U

    Notes:
    1) Specified without connectors.
    2) Add an additional 0.2dB loss per connector.


    CWDM Mux/Demux Module Solution

    LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact DesignLGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design


    Products Overview:

    LGX Box Type CWDM Mux Demux 16 Channel High Isolation Compact Design


    Ordering Information:

    CWDMXXXXXXXXXX
    linkoptoNumber of ChannelsModule typeCable TypeFiber LengthInput ConnectorOutput
    Connector
    CWDML02=2 Channel0=100x80x10mm00=none05=0.5m0=none0=none
    03=3 Channel1=142x102x14.509=900um10=1.0m1=LC/UPC1=LC/UPC
    04=4 ChannelmmLoose tube15=1.5m2=LC/APC2=LC/APC
    05=5 Channel2=LGX Box20=2.0mm30=3.0m3=SC/UPC3=SC/UPC
    06=6 Channel3=19″1U Rack30=3.0mm40=4.0m4=SC/APC4=SC/APC
    07=7 ChannelX=Others50=5.0m5=FC/UPC5=FC/UPC
    08=8 Channel......6=FC/APC6=FC/APC
    ......7=LC/APC7=LC/APC
    X=CustomizedX=Customized
    16=16Channel
    17=17Channel
    18=18Channel
