DWDM Mux Demux Module 100GHZ 8CH ABS box type with LC/UPC
Connectors 900um Fiber
Description
DWDM system supports ultra-long-haul transmission via a single
fiber, coupled with DWDM MUX/DEMUX and OADM with speed protocols of
up to 100G/200G per channel.The DWDM modules passively multiplex the optical signal outputs
from 4 or more electronic devices, and send them over a single
optical fiber and then de-multiplex the signals into separate,
distinct signals for input into electronic devices at the other end
of the fiber optic link. Our standard package types of DWDM MUX
DEMUX are Field Module ABS Plastic Box, 19" Rack Mount Chassis and
LGX Metal Cassette Box.
Features
>Low insertion loss
>Based on thin-film filter or AWG technology
>DWDM 100GHz or 50GHz ITU Channel Spacing,C17-C61 & H17-H61 , X channels over Single or Duplex fiber
>LC/SC/FC/ST, UPC/APC Interface are available
>Rate transparent for applications up to 10Gbps
>Monitor/Upgrade/1310nm Express port for external functions
>Completely passive, no electric power required
>Low-profile modular LGX box design optional, fits in LGX chassis
Applications
Ø DWDM System
Ø PON Networks
Ø CATV Links
Compliance
Ø Telcordia GR-1209-CORE-2001
Ø Telcordia GR-1221-CORE-1999
Ø ITU-T G.694.1
Ø RoHS
Specifications (1×N DWDM Mux/Demux Module)
| Parameters | |
| Channel Space (GHz) | 100 | 200 |
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 |
| Center Wavelength (nm) | ITU Grid |
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 |
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 |
| Fiber Type | SMF-28e with 900um loose tube or customer specified |
| IL (dB) | 1.8 | 3.0 | 4.0 | 1.7 | 2.9 | 3.8 |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 |
| Isolation (dB) | Adjacent Channel | 25 | 28 |
| Non-Adjacent Channel | 40 |
| PDL (dB) | 0.2 |
| PMD (ps) | 0.1 |
| RL (dB) | 45 |
| Directivity (dB) | 50 |
| Maximum Optical Power (mw) | 300 |
| Operating Temperature (℃) | -40~85 |
| Storage Temperature (℃) | -40~85 |
| BOX Package (mm) | 100*80*10 or 140*115*18 |
| LGX Package | 1U,2U |

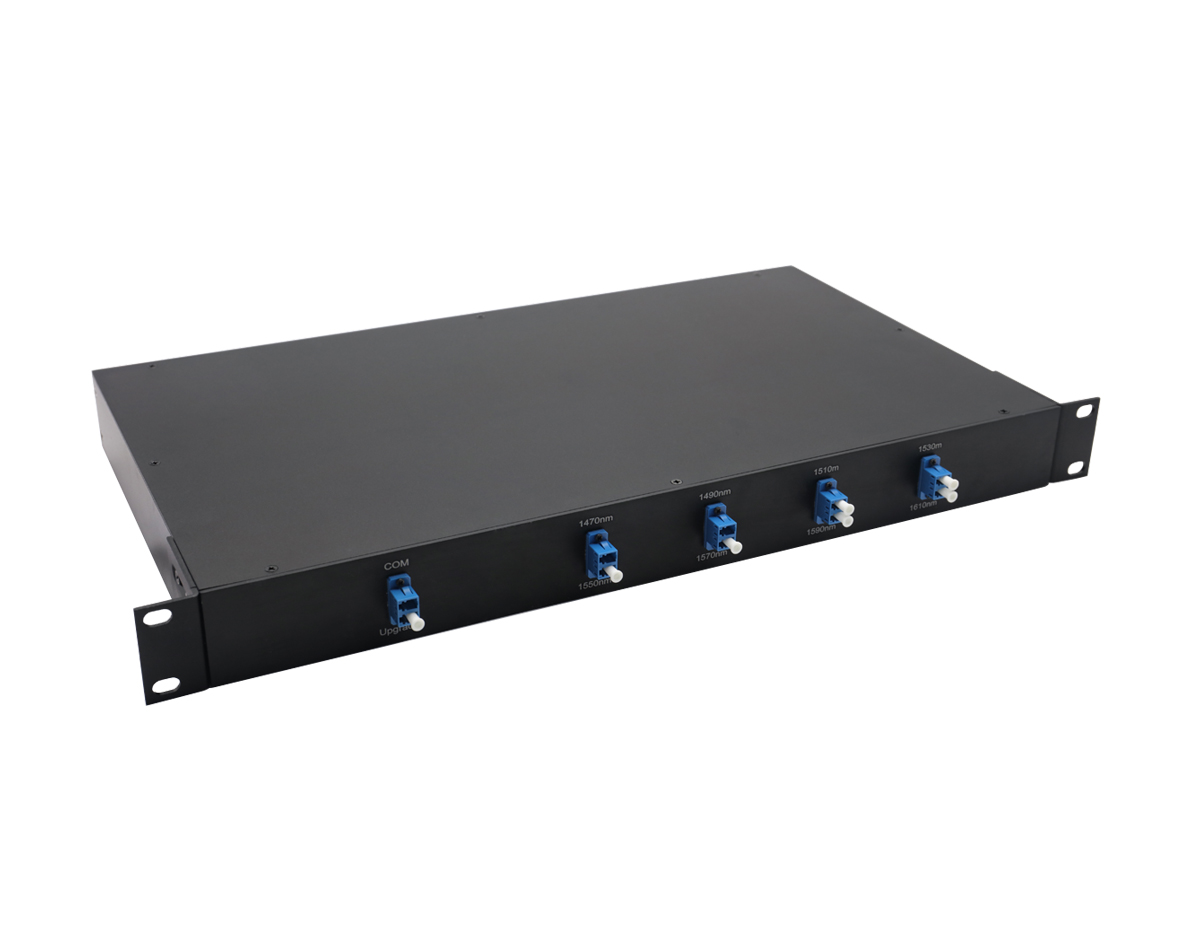

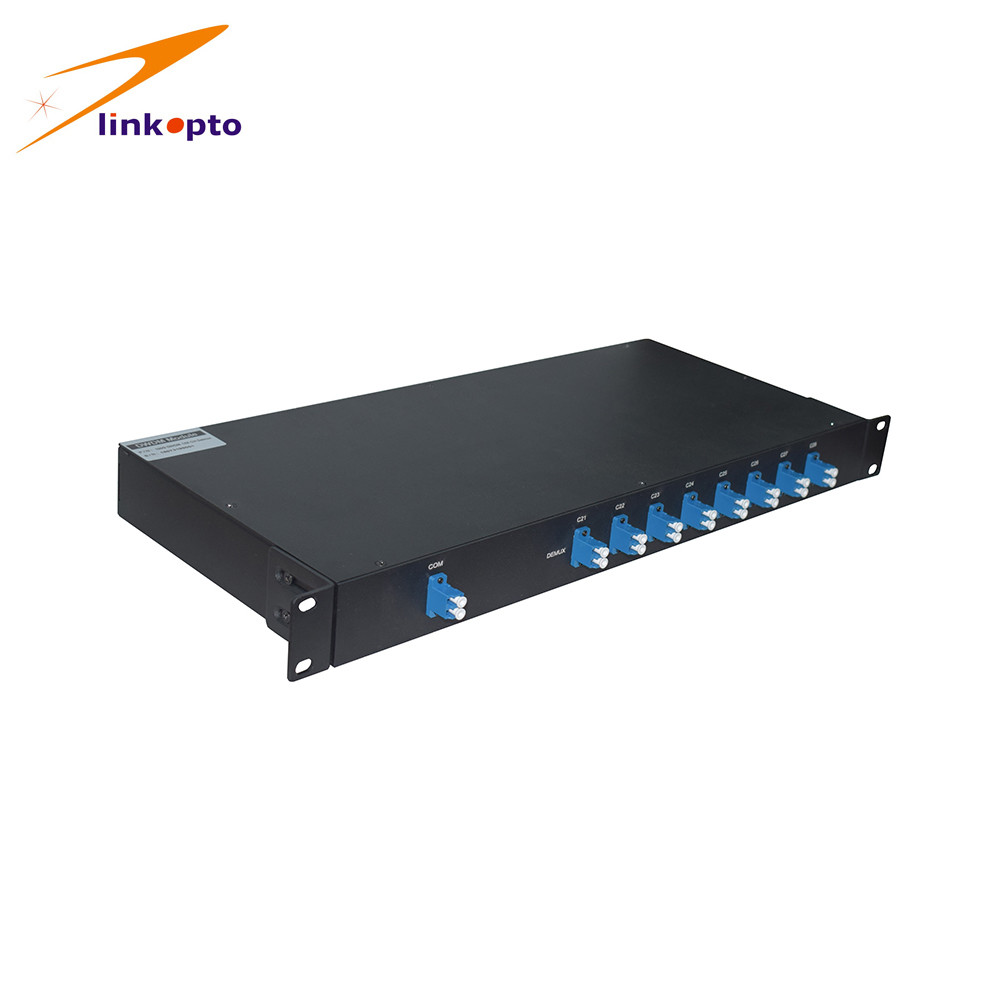

| 19’’ Rack mount Package | 1U |
Notes:
1) Specified without connectors.
2) Add an additional 0.2dB loss per connector.
Products Overview:
Ordering Information:
| DWDM | X | X | XX | X | XX | X | X | XX |
| Linkopto | Channel Spacing | Number of Channels | Configuration | 1st Channel | Fiber Type | Fiber Length | In/Out Connector |
| DWDM | L | 1=100GHz | 04=4 Channel | M=Mux | 21=Ch21 | 1=Bare fiber | 1=1m | 0=None |
| 2=200GHz | 08=8 Channel | D=Demux | …… | 2=900um loose tube | 2=2m | 1=FC/APC |
| 5=50Ghz | 16=16 Channel | | 34=Ch34 | 3=2mm Cable | S=Specify | 2=FC/PC |
| | …… | 4=3mm Cable | | 3=SC/APC |
| 50=Ch50 | | 4=SC/PC |
| …… | 5=ST |
| 6=LC |
| S=Specify |
