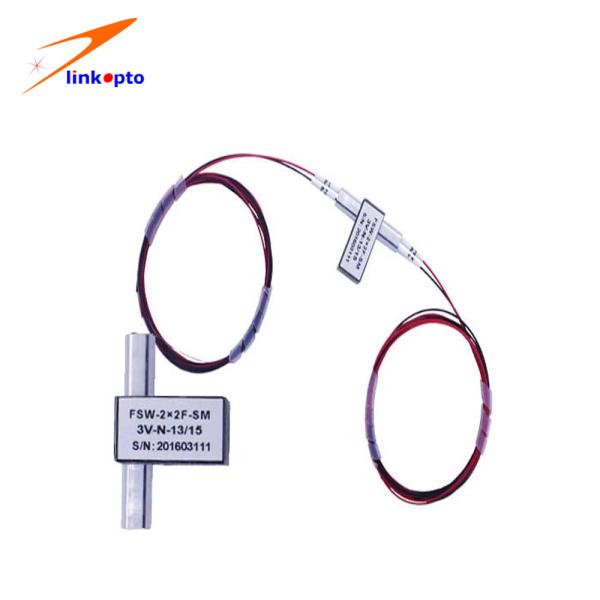

F2x2 SC Connector 1650nm 0.5m Length Fiber Optical Switch

Product Categories

Shenzhen linkopto Technology Co. Ltd

Contact Now

Add to Cart

Without Connector 1260-1650nm Singlemode 2x2F fiber Optical Switch

Features

Low Insertion loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

Applications

Optical Network

Protection/Restoration

Optical Singnal Routing

Configurable Optical Add/Drop

Transmitter and receiver protection

Network Test System

Specification

Technical Paremeter

Parameters	Unit	FSW-2×2F
Wavelength Range	nm	1300±40	1260 ~ 1650
Test Wavelength	nm	1300	1310 / 1550
Insertion Loss 1, 2	dB	Typ: 0.7 Max: 0.9
Return Loss 1, 2	dB	MM ≥ 30 SM ≥ 50
Crosstalk 1	dB	MM ≥ 35 SM ≥ 55
PDL	dB	≤0.05
WDL	dB	≤0.25
Repeatability	dB	≤±0.02
Operating Voltage	V	3.0 or 5.0
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤8
Optical Power	mW	≤500
OperatingTemperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Weight	g	14~25
Dimension	mm	(L)27.0×(W)12.6×(H)8.2 ±0.2
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors.
