10G 1390nm 30KM Fiber CWDM SFP Modules SM Duplex LC Connector

Ask Lasest Price
Brand Name :	Linkopto , or OEM
Model Number :	10G 1390nm 30KM CWDM SFP+ LC
Certification :	CE, FCC, ROHS, TUV, ISO9001
Price :	Get latest price
Payment Terms :	T/T, WU, PayPal, Moneygram, L/C
Supply Ability :	20,000pcs per week
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

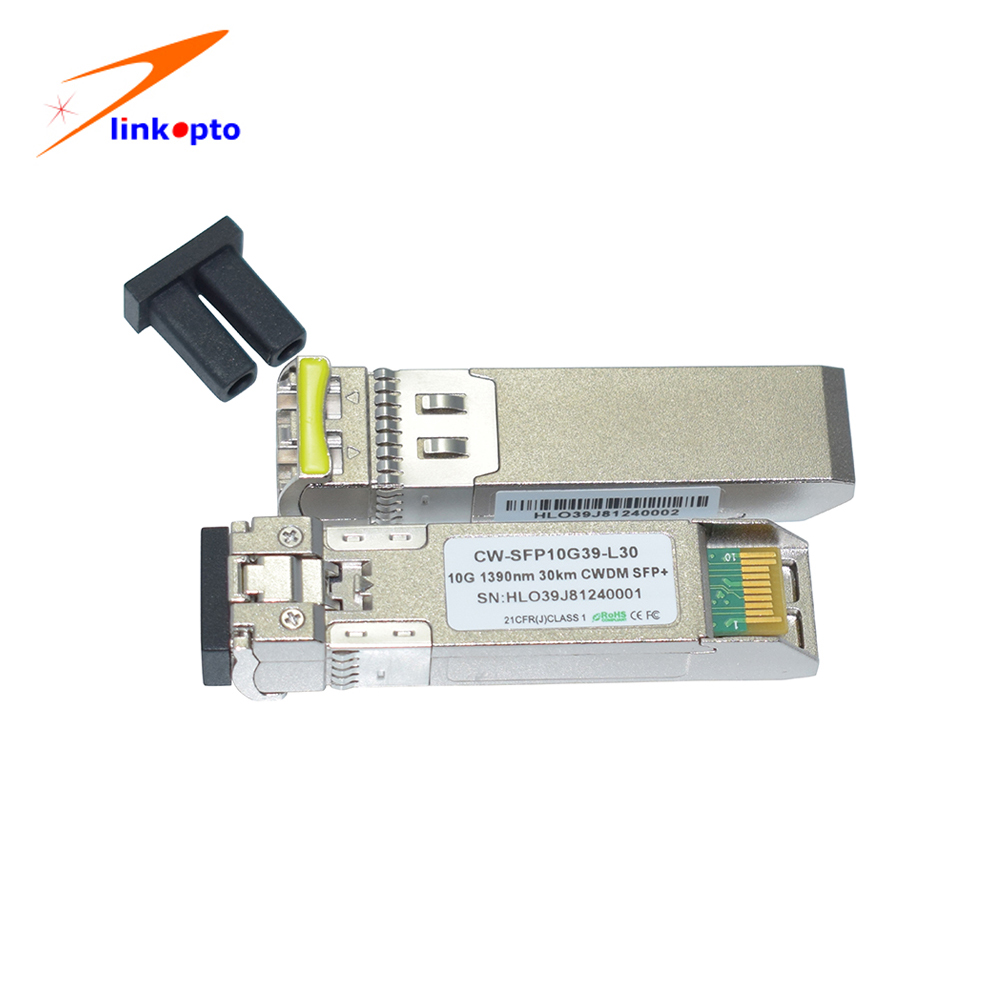

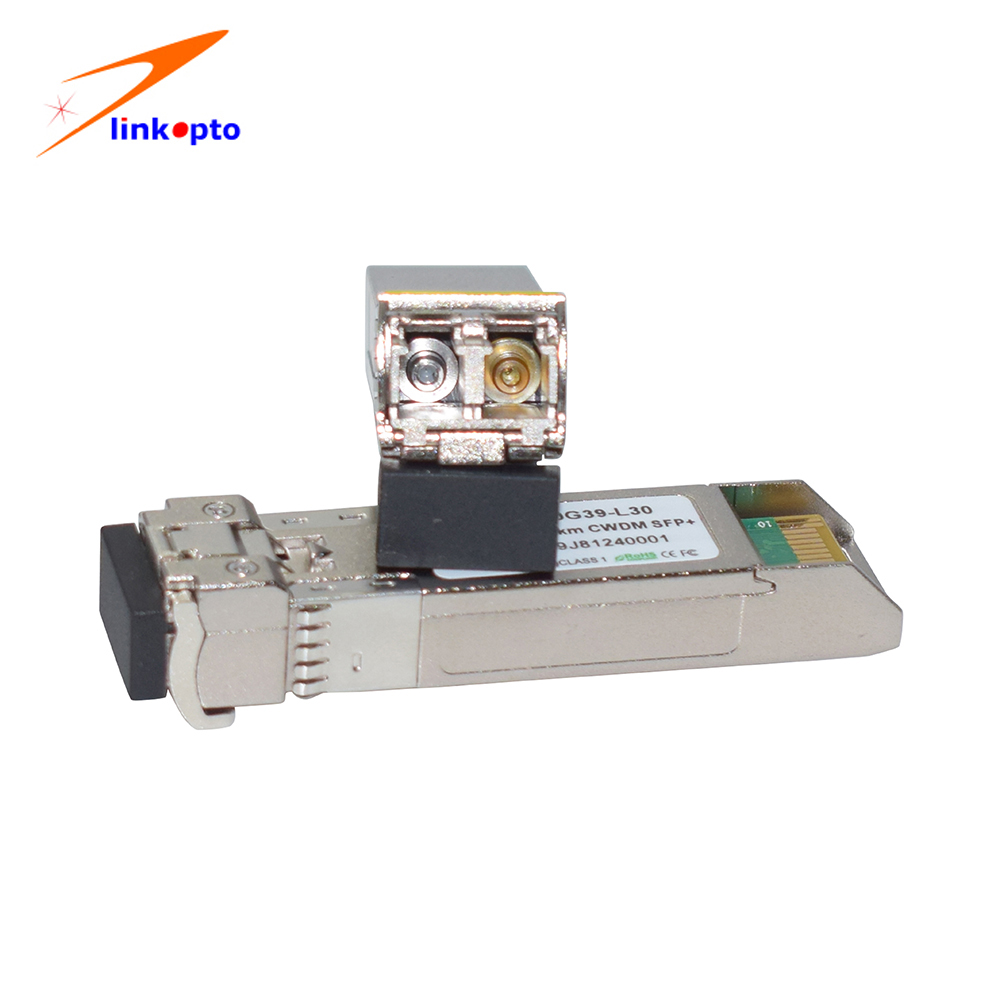

10G 1390nm 30KM Fiber CWDM SFP Modules SM Duplex LC Connector

Fiber CWDM SFP Modules 10G 1390nm 30KM SM Duplex LC Connector Fiber Optics

Description

The SFP+ transceivers are high performance, cost effective modulessupporting data rate of10Gbps and 40km transmission distance with SMF. The transceiver consists ofthree sections: a Cooled EML laser transmitter,an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. Allmodules satisfy class I laser safety requirements. Thetransceivers are compatible with SFP Multi-Source Agreement and SFF-8472digital diagnostics functions.

Features

1.1 ITU-T DWDM grid wavelengths
1.2 Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates
1.3 Temperature Stabilized DWDM DFB Transmitterd
1.4 Multi channels optional
1.5 Low Power Dissipation 1.5W Maximum
1.6 Excellent ESD protection
1.7 -5ºC to 70ºC Operating Case Temperature
1.8 Single 3.3V power supply
1.9 Diagnostic Performance Monitoring of module temperature,
1.10 Supply Voltages, laser bias current, transmit optical power,
1.12 receive optical power
1.13 RoHS compliant and lead free

Applications

10Gbps Optical systems
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
LTE systems
Other Optical links

10G CWDM Transceivers

CWDM XFP(10G)
CWDM XFP LR	10G	(1270-1330nm)	10KM	CWDM XFP	0~70°c
CWDM XFP ER	10G	(1470-1610nm)	40KM	CWDM XFP	0~70°c
CWDM XFP ZR	10G	(1470-1610nm)	80KM	CWDM XFP	0~70°c
CWDM SFP+(10G)
CWDM SFP+(10G) LR	10G	(1270-1330nm)	10KM	CWDM SFP+	0~70°c
CWDM SFP ER	10G	(1470-1610nm)	40KM	CWDM SFP+	0~70°c
CWDM SFP ZR	10G	(1470-1610nm)	80KM	CWDM SFP+	0~70°c
CWDM XENPAK(10G)
CWDM XENPAK ER	10G	1470~1610	40KM	XENPAK	0~70°c
CWDM XENPAK ZR	10G	1470~1610	80KM	XENPAK	0~70°c
CWDM X2 (10G)
CWDM X2 -ERC	10G	1470~1610	40KM	X2	0~70°c
CWDM X2-ZRC	10G	1470~1610	80KM	X2	0~70°c

Quality Control

Guarantee
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
